1909 Morgan Runabout "Bolivar" ~ For Sale ! ~
Being a fan of retro-cars, I always wanted to have one (for cheap, of course). First I thought I could have a replica of Morgan Three Wheeler Super Sports. I used this forum to find information on how to build the custom version of this tricycle replica.

But after reviewing our local laws I understood that if I want to have a road legal vehicle, it should have electric engine (less than 3kwt) and pedals (to be considered as a bicycle) - then it won't require a number plate and driver license. From Morgan tricycles line, only first Morgan Runabout 1909 is capable to match these requirements somehow. So, I found the company which can build this replica for me (that was a real quest, actually), and we started the project.



We developed the drawings from photos, and started buying the details and working on the frame.



Electric motor-wheel 1500w



Hydraulic brake caliper, disc rotor and 18t freewheel for the rear wheel. Later I bought the same two brake calipers and disc rotors for the front wheels.



Rear leaf springs from an old car will be used for rear suspension.

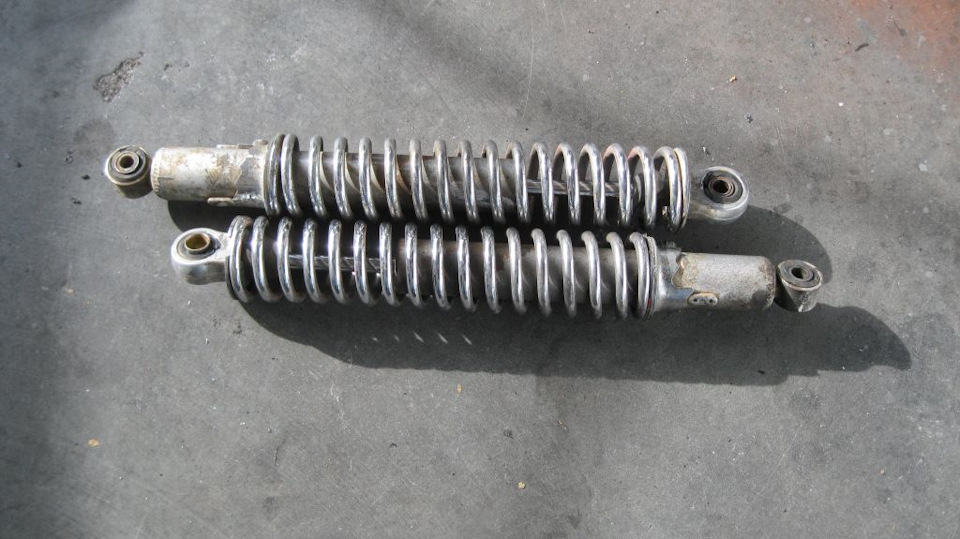

Springs from old soviet bike shock adsorbers will be used for the front suspension.



Frame details cut by laser.



The draft frame assembly (no welding yet).

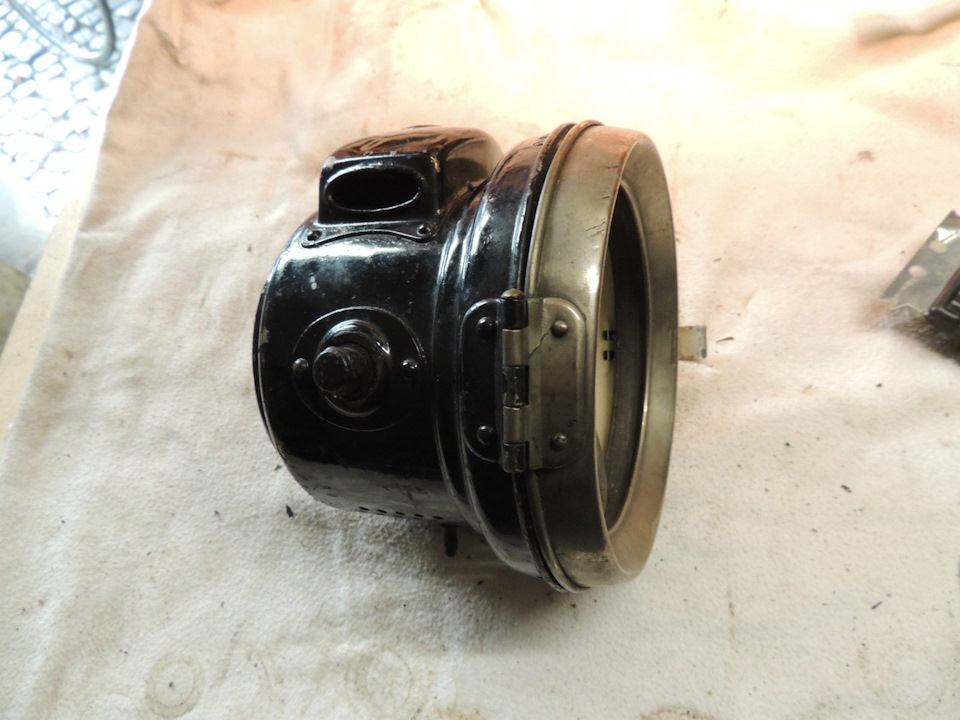

Old acetylene headlamp bought from EBAY.

To be continued...



Edited 1 time(s). Last edit at 2017-01-08 04:32 PM by Wurger.

. Hide banner ads & support this website by becoming a > Gold Supporting Member <
stegla Stephen G
Guernsey, Channel Islands, UK   GBR
Great project! I look forward to seeing your progress.

Steve

chrisenamels Avatar
chrisenamels Silver Member Chris Brown
Llangadog, Carmarthenshire, UK   GBR
I'll be watching with interest, a road legal version of the later Runabout is what I want to build eventually. Fortunately the heavy quadricycle specifications in the UK aren't too onerous, and it'll only deviate from the cycleckart specs by having two seats.

Chris

. Hide banner ads & support this website by becoming a > Gold Supporting Member <
Wurger Semen K
Kharkov, Kharkovskaya oblast', Ukraine   UKR
1909 Morgan Runabout "Bolivar" ~ For Sale ! ~
Yes, it is totally possible to build road legal Morgan replica in UK, I saw many build threads and in the end these vehicles got their number plates successfully. Unfortunately, while our laws technically allow registration of custom-built vehicles, you have to comply with a lot of obsolete standards and undergo a lot of very expensive paid tests, and this is possible only in one place in the country.

According to our Traffic Rules, a vehicle doesn't require a number plate and driver license if it's equipped with the electric engine less than 3kwt. However, when I sent the official request to our Ministry of Internal Affairs, they obviously didn't want to confirm that fact (because the ultimate goal of the system is to forbid and suppress) and said that we also have Vienna Convention of Road Traffic (1968) according to which only bicycles with engines and rail transport don't require a number plate. Therefore, I decided to add pedals so the vehicle can be compliant even with Vienna Convention.

Wurger Semen K
Kharkov, Kharkovskaya oblast', Ukraine   UKR
1909 Morgan Runabout "Bolivar" ~ For Sale ! ~
Few additions.



Front hubs Novatec DH41SB-36 (for 20mm axle)



Rear suspension parts.



Front suspension parts.



Pedals.



Draft scheme of the vehicle controls.



Draft scheme of the vehicle battery 60v30ah - it will be portable (±13kg) so I could carry it with me to recharge.



Edited 1 time(s). Last edit at 2017-01-08 03:10 PM by Wurger.

moto-klasika Avatar
moto-klasika Zoran R. P.
Bern, Bern, Switzerland   CHE
Hello Semen,
Great idea and great realisation!
All the best for following work!
Ciao,
Zoran




Zoran R. Pualić
(mostly living in Bern, Swiss & happy in my Belgrade, Serbia)

carChips Avatar
carChips Victor Harnish
Kelowna, BC, Canada   CAN
1933 MG Magnette
1973 Triumph Spitfire 1500 "Chip"
1989 GMC Sierra 1500 "Bush Truck"
Very nice, I like what you have done with the frame. Nice and tidy.

Do you have a machine shop?
